RTD

Thermo Tec’s RTDs are designed for precision temperature measurement in industrial environments where accuracy, repeatability, mechanical durability, and long-term stability are important.
The portfolio supports Pt, Ni, Cu, PTC, and NTC sensing elements, providing flexibility according to operating temperature, sensitivity, response requirements, and application constraints.
Mechanical configurations include mineral-insulated probes, protection-tube assemblies, cable probes, sanitary designs, surface sensors, welded-flange assemblies, and spring-loaded sensors.
Standard industrial configurations are generally presented for operation up to approximately 600°C.

Spring-loaded bayonet RTDs use a pressure spring to provide flexibility in positioning the sensing tip, making them suitable for specialized contact-temperature applications.
Welded-flange RTDs provide another process-connection option where a flange-based installation is required.
Autoclave PT100 sensors are specifically designed for pharmaceutical and laboratory sterilization environments involving elevated pressure, temperature, and water exposure.
The autoclave design is rated in the document up to 150°C and incorporates a thick-wall silicone rubber jacket and strain-relief sleeve to provide a leak-resistant connection and permit full water immersion.

Basic RTDs use metallic sheaths with MgO insulation surrounding the internal conductors, providing electrical insulation while supporting stable temperature transmission.
Standard sheath/protection materials include SS304, SS316, and SS316L, while Hastelloy is available for more demanding environments.
Basic probe diameters range approximately from 3–10 mm, while protection-tube versions range from 12–28 mm, with additional sizes available on request.
Available mechanical interfaces include BSP and NPT threaded fittings, flanged connections, head assemblies, connectors, and fly leads.
Simplex and duplex configurations provide flexibility where either a single measurement or sensor redundancy is required.

Protection-tube configurations are particularly relevant where the sensing element requires additional mechanical separation from the process.
The use of stainless steels and Hastelloy provides material options for different industrial environments, including applications identified in the document as corrosive or mechanically demanding.
The portfolio is intended to withstand vibration, thermal cycling, and harsh process environments, which is important for installations such as rotating equipment, pipelines, furnaces, processing plants, and heavy industry.
From a mechanical design perspective, correct selection of probe diameter, protection material, insertion arrangement, process connection, and termination is therefore central to reliable sensor performance.

The strongest applications are processes requiring accurate and stable temperature measurement rather than simply the widest possible temperature range.
Key sectors include oil & gas, power generation, steel, cement, chemical/petrochemical, mining, water treatment, food processing, pharmaceuticals, HVAC, and semiconductor manufacturing.
Applications range from liquids and gases to surfaces, pipelines, process equipment, sterilization systems, reactors, boilers, turbines, mills, and other industrial assets.
The portfolio's mechanical variety allows the sensor construction to be adapted to significantly different installation and environmental requirements.

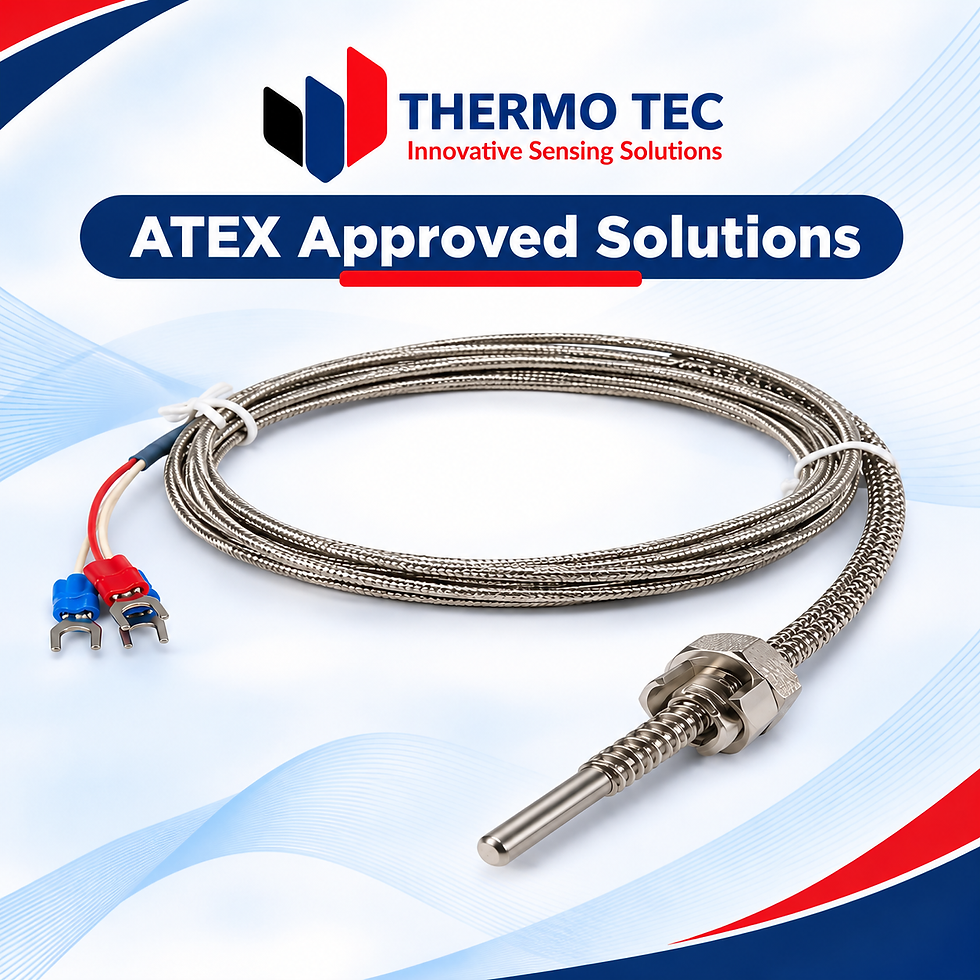

Hazardous-area versions incorporate flameproof "d", increased-safety "e", and intrinsically safe "i" approaches described in the document.
Temperature classification from T1–T6 is intended to ensure that maximum sensor surface temperature remains compatible with the ignition characteristics of the surrounding hazardous atmosphere.
These configurations are particularly relevant for oil & gas, petrochemical, and chemical installations containing combustible gases, vapors, mists, or dusts.
The document identifies ATEX compliance as a core requirement for these installations, making the certified housing, terminal head, electrical protection method, and temperature classification part of the overall sensor selection—not optional accessories.

Mechanical configuration is as important as sensing-element selection. An appropriate Pt element alone does not define a suitable RTD; sheath material, diameter, connection, protection, and installation arrangement must match the process.
Protection requirements vary significantly by application. Direct/basic probes offer smaller physical dimensions, while protection-tube designs provide additional mechanical protection.
Material selection should be process-specific. The available SS304, SS316/316L, and Hastelloy options allow construction to be matched to different environmental requirements.
Special applications require dedicated designs. Autoclaves, hazardous areas, and spring-loaded contact measurements should use purpose-built configurations rather than generic RTDs.
System integration is already supported. The RTDs are described as compatible with transmitters, PLC, DCS, and SCADA architectures, enabling incorporation into wider industrial monitoring and control systems.

Create an engineering selection matrix covering process temperature, medium, pressure, corrosion exposure, vibration, required accuracy, response requirement, sheath material, probe diameter, insertion length, process connection, and hazardous-area classification.
Standardize preferred RTD assemblies for common applications to reduce engineering variation—for example, general-purpose process RTDs, heavy-duty protected RTDs, pharmaceutical/autoclave PT100s, and hazardous-area RTDs.
Define mechanical operating limits more completely. The source provides temperature and dimensional information, but a stronger engineering datasheet should also clearly state applicable pressure limits, insertion lengths, response characteristics, environmental/IP ratings, connection details, and material specifications where relevant.
Separate standard and hazardous-area specifications clearly. ATEX/Ex products should have dedicated technical documentation defining protection concept, zone suitability, temperature class, approved construction, and installation requirements.
Develop application-specific datasheets and selection guides for oil & gas, cement, steel, chemical, pharmaceutical, and power applications so engineers can select the complete mechanical assembly rather than only the sensing element.

Conclusion

Thermo Tec has a mechanically versatile RTD platform covering basic probes through protected, flanged, spring-loaded, autoclave, and hazardous-area configurations.
The principal engineering strength is the ability to configure the sensing assembly around the process environment using different materials, diameters, fittings, protection methods, and terminations.
The main improvement opportunity is to convert this broad capability into a more structured engineering-selection system with clearly defined mechanical and operating limits, making specification, procurement, installation, and replacement easier for end users and EPC engineers.
